BFT Hinge & Roller Replacement: The Fort Lauderdale Owner’s Guide

BFT hinge and roller replacement in Fort Lauderdale typically runs $260 to $480 installed, parts and labor included, and we keep the common BFT roller assemblies and hinge sets stocked on our trucks for same-day swaps. Most owners figure out the part has failed the same way: the gate starts dragging against its track, groaning on every cycle, or hanging visibly crooked at the top corner. On a BFT gate operator working a heavy steel or aluminum leaf, a worn roller doesn’t just make noise – it puts uneven load on the operator motor and can burn out a gearbox that would have lasted another five years.

Call (754) 354-7351

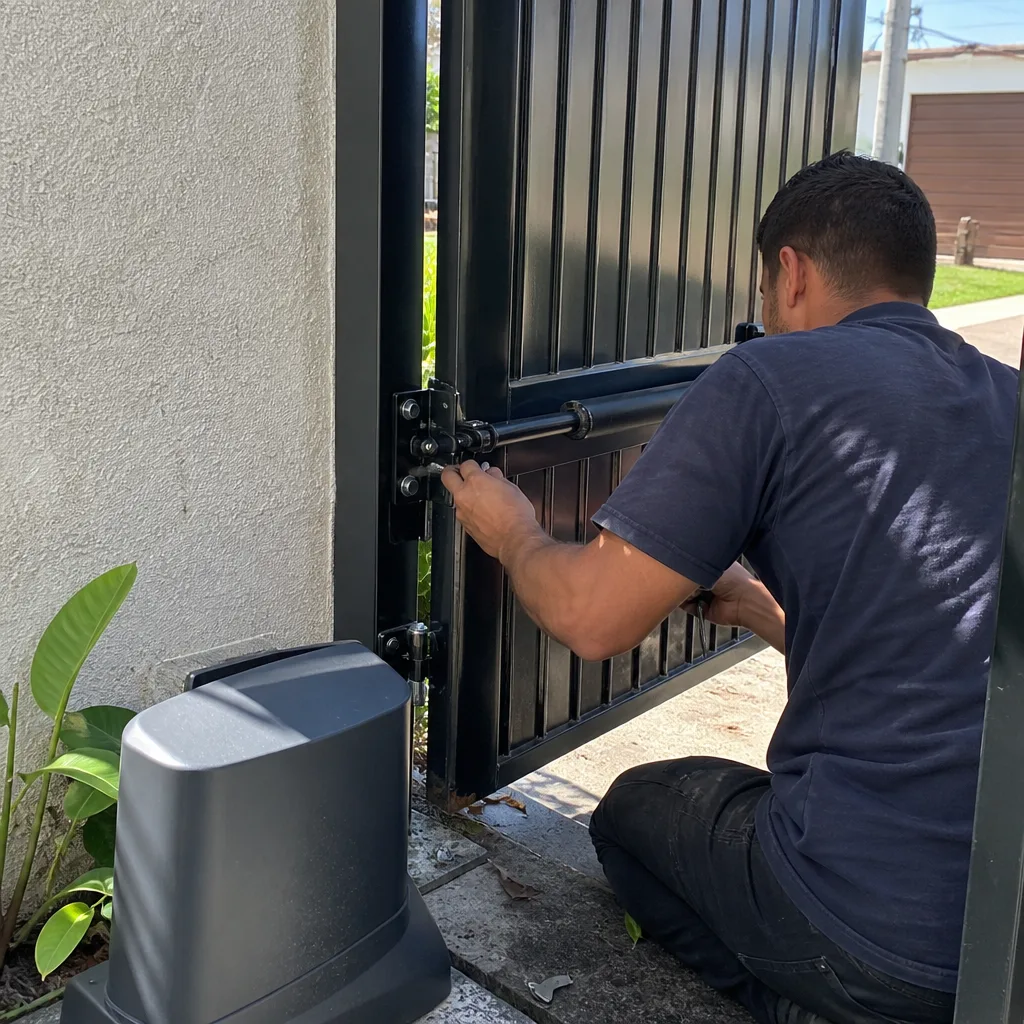

The hinge side is just as unforgiving. BFT gate leaves are heavy, and when a barrel hinge develops slop, the gate sags enough to misalign the operator arm and the limit switches. You hear it, you see it, and then one afternoon the gate simply stops mid-travel. That’s usually when we get the call.

Which BFT Models This Applies To

We do hinge and roller replacement across the BFT swing-gate lineup you’ll actually find in Fort Lauderdale: Deimos, Phobos, Rigel, and the older Icarus and Kustos series. The compatibility gotcha with BFT is that the hinge post brackets vary by leaf weight class – the Deimos BT A400 uses a different hinge barrel diameter than the smaller Phobos, and if someone sells you the lighter hinge set because it “looks close,” the first gate cycle will tell you the truth. We check the model plate on the operator, measure the existing hinge pin diameter and leaf thickness, and match the replacement to the rated gate weight, not just the visual shape.

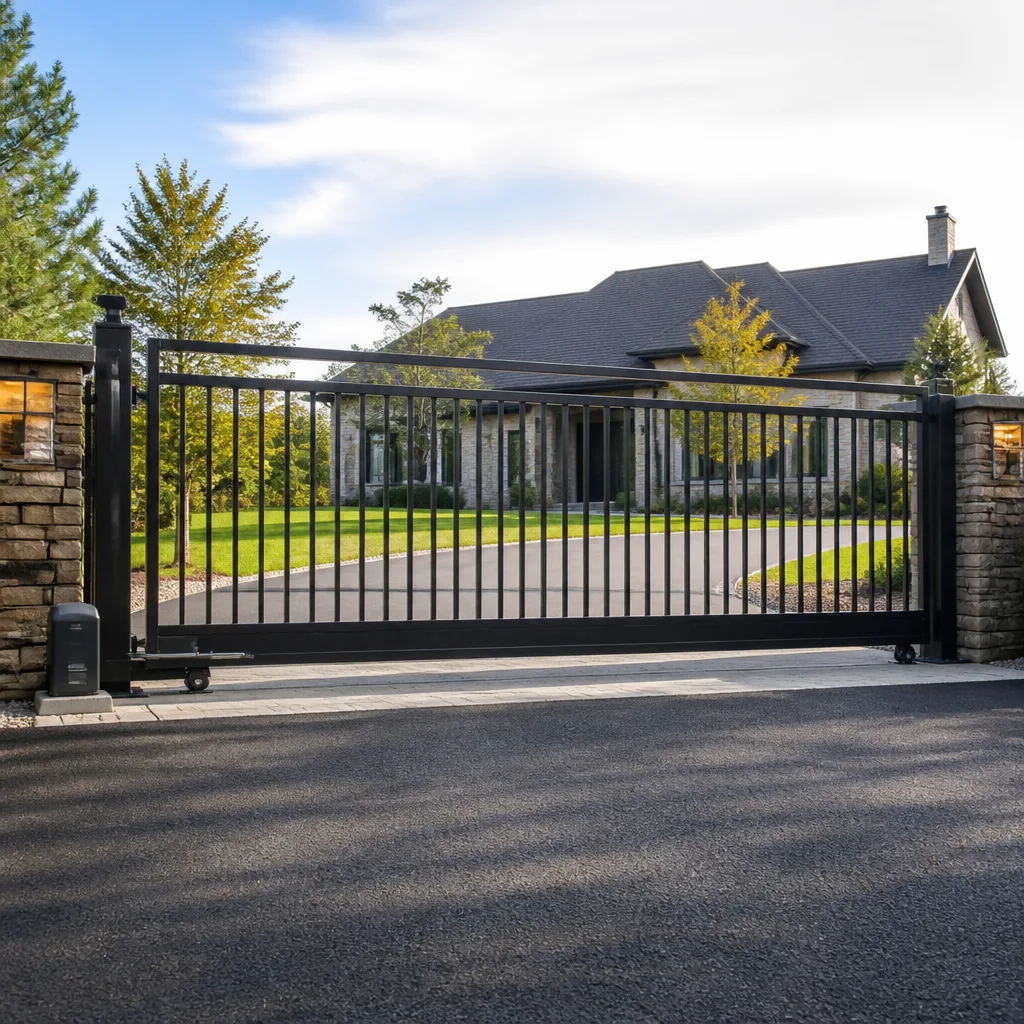

For rollers, BFT uses a specific nylon wheel profile with a shielded bearing on most Florida-installed slide gate systems. A generic urethane wheel off the shelf will usually bolt up but wear out in a year because the wheel face profile doesn’t match the BFT track groove. We keep both genuine BFT hinge and roller parts and a short list of aftermarket equivalents we’ve tested on BFT installations in coastal Fort Lauderdale conditions – and we’ll tell you which one you’re getting and why before the work starts.

A quick note for clarity: Portcullis Gate Repair Fort Lauderdale is an independent service provider. We’re not affiliated with BFT, but we service their equipment every week and stock the parts that fail most often along the Florida coast.

Signs Your BFT Hinge & Roller Replacement Is Failing

• The gate scrapes or binds near the end of its travel. This is almost always a roller wheel worn flat on one side – the gate rides on one edge of the track instead of rolling on its crown. The noise gets worse right before the operator trips its obstruction sensor and reverses.
• The gate droops at the latching corner. A hinge pin wearing in its barrel lets the leaf drop, which means the operator arm is now pushing against the gate’s weight at an angle. The limit switches drift, and eventually the gate won’t close far enough to latch.
• You can hear a clicking or knocking when the gate starts moving. That’s the hinge play taking up the slack before the leaf actually begins to move. It slams the bearing surface every cycle, and it only wears faster from there.
• The operator motor sounds strained, or the gate is slower than when it was installed. The motor is compensating for a mechanical fault downstream. A $300 hinge swap now beats a $900 operator replacement in a year.
• There’s rust staining or metallic dust on the track or hinge post. In Fort Lauderdale’s salt air, steel hinge pins and roller bearings corrode from the outside in. The dust is the bearing telling you it’s already gone.

Replacement Cost & What’s Included

Here’s the straight pricing picture for Fort Lauderdale, as of 2025. A standard BFT hinge set replacement runs $260 to $380 installed. Roller wheel replacement runs $180 to $280 per roller assembly. A full hinge and roller job on a wide slide gate, or one with seized fasteners and a rusted track section, runs $420 to $520. The range depends on whether we’re matching genuine BFT parts or a tested aftermarket equivalent, the gate weight and leaf size, and how much corrosion we’re fighting to get the old hardware off.

Every quote includes removal of the old part, installation and alignment of the new one, and a full gate travel test with the operator. We give you the price in writing before a single bolt is turned, not after the gate is disassembled. The Kingswell Guarantee covers the work for 365 days – written on the invoice – and if the repair fails inside that period, we come back and fix it at no charge under the 365-Day Done Right Promise. That’s the same standard for every Kingswell company, including our independent Fort Lauderdale location.

DIY or Call Us?

You can safely inspect a few things: watch the roller wheels while the gate moves, look for any visible gap between the hinge pin and its barrel, and check for rust dust beneath the bearing caps. What we’d caution against is swapping these parts yourself if the gate leaf is heavy enough to need a BFT operator in the first place. That leaf can weigh 400 to 900 pounds. Propping it in place while you pull hinge pins – sometimes seized from years of Florida salt air – is where we’ve seen people get hurt, and where a gate drops hard enough to bend the operator arm and crack the post. This is one repair where the labor is worth the price because the cost of getting it wrong lands on you, not the part.

If you’d rather have us take a look, call (754) 354-7351 and we’ll send a tech who knows BFT specifically. We’ll quote the job in writing before work starts. A written price first, then the work – that’s how we do it.
